Pneumatic gripper

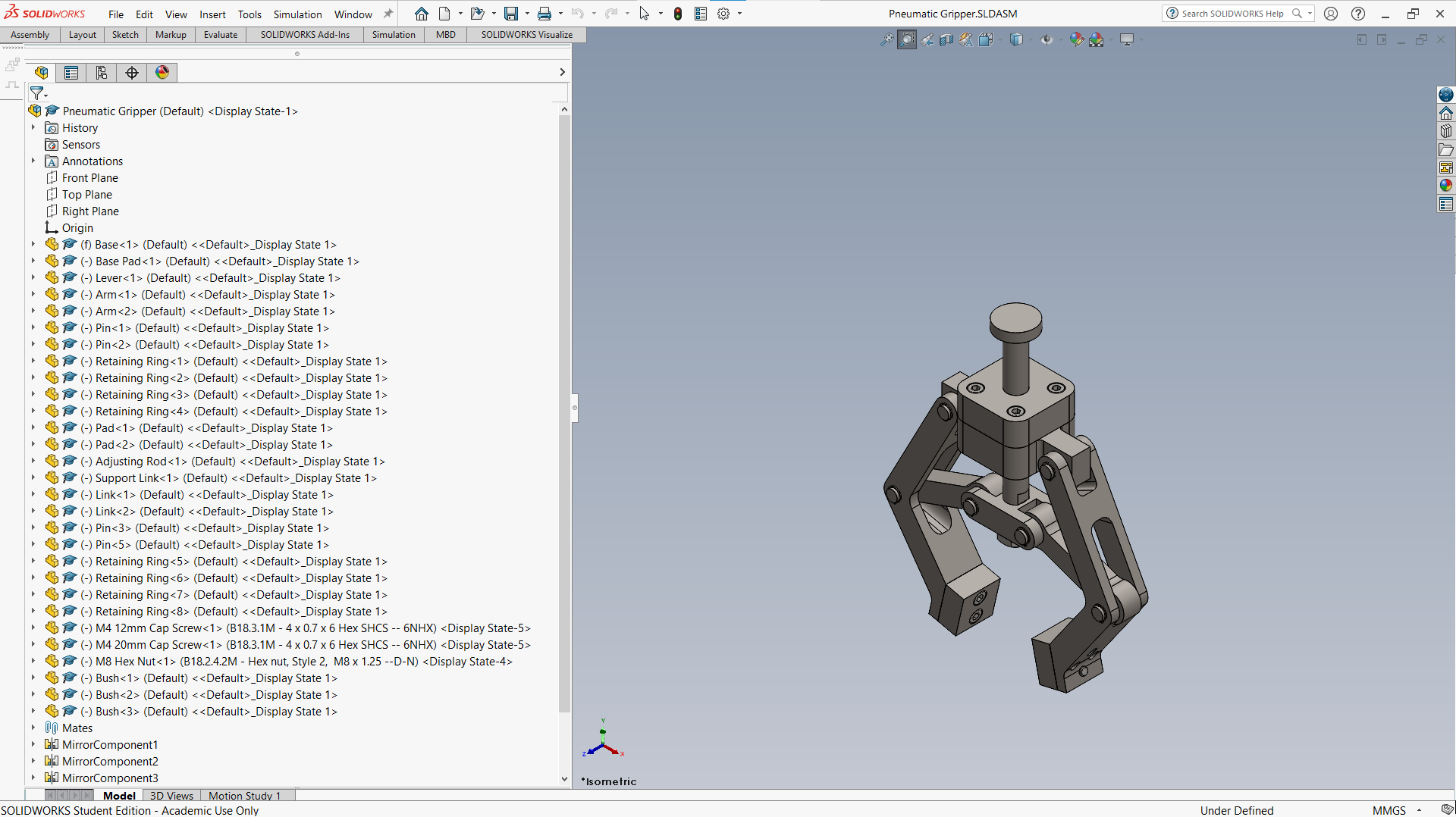

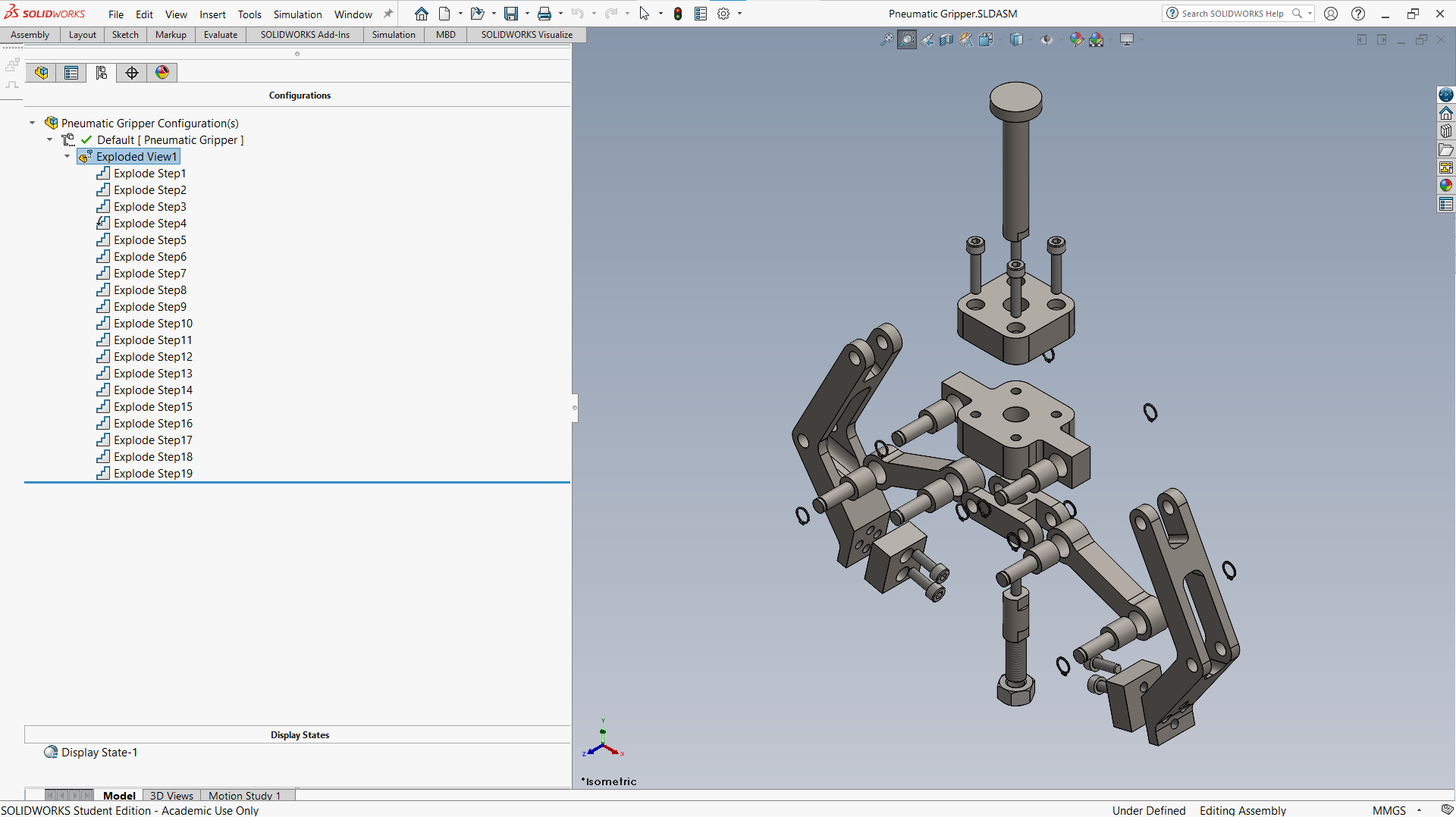

Assembly

Motion

Turntable motion of the pneumatic gripper assembly
Animation of a motion study of the pneumatic gripper assembly

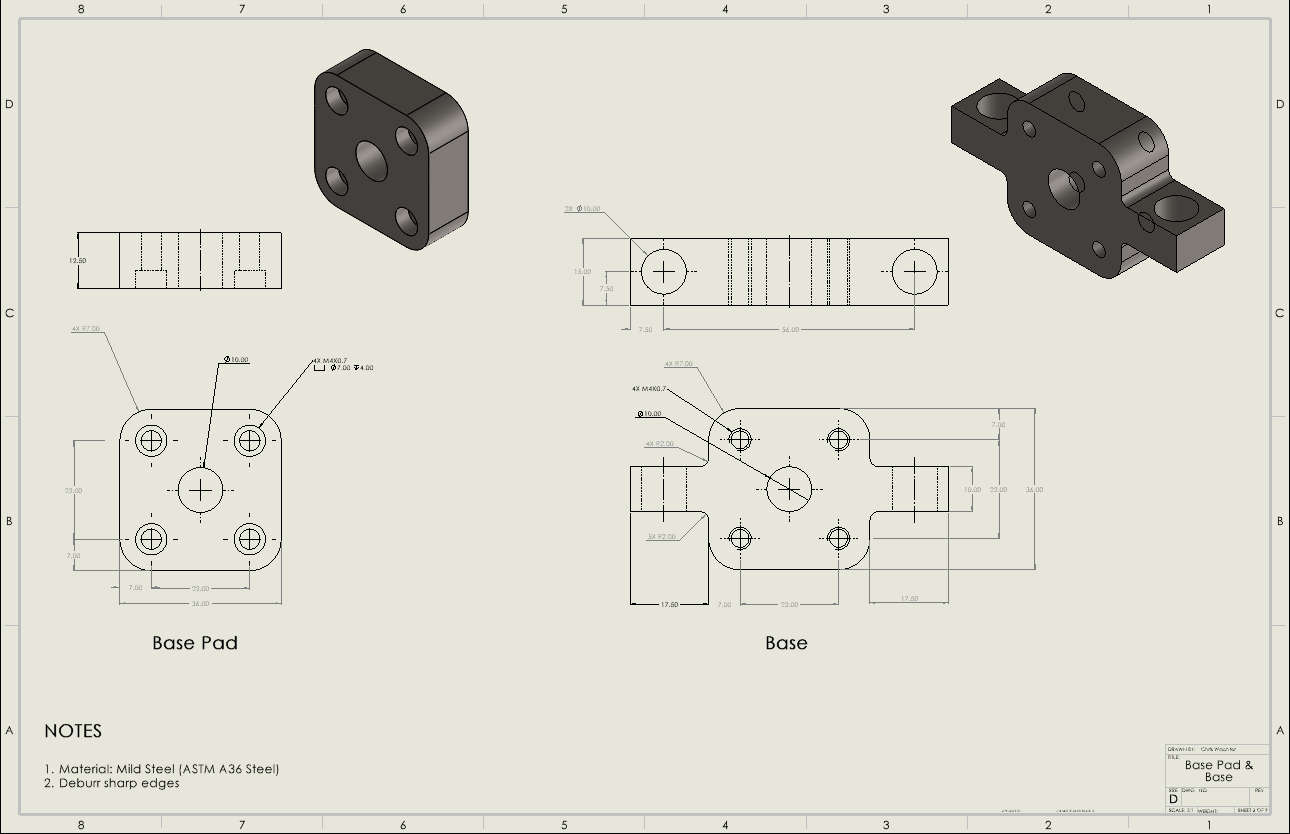

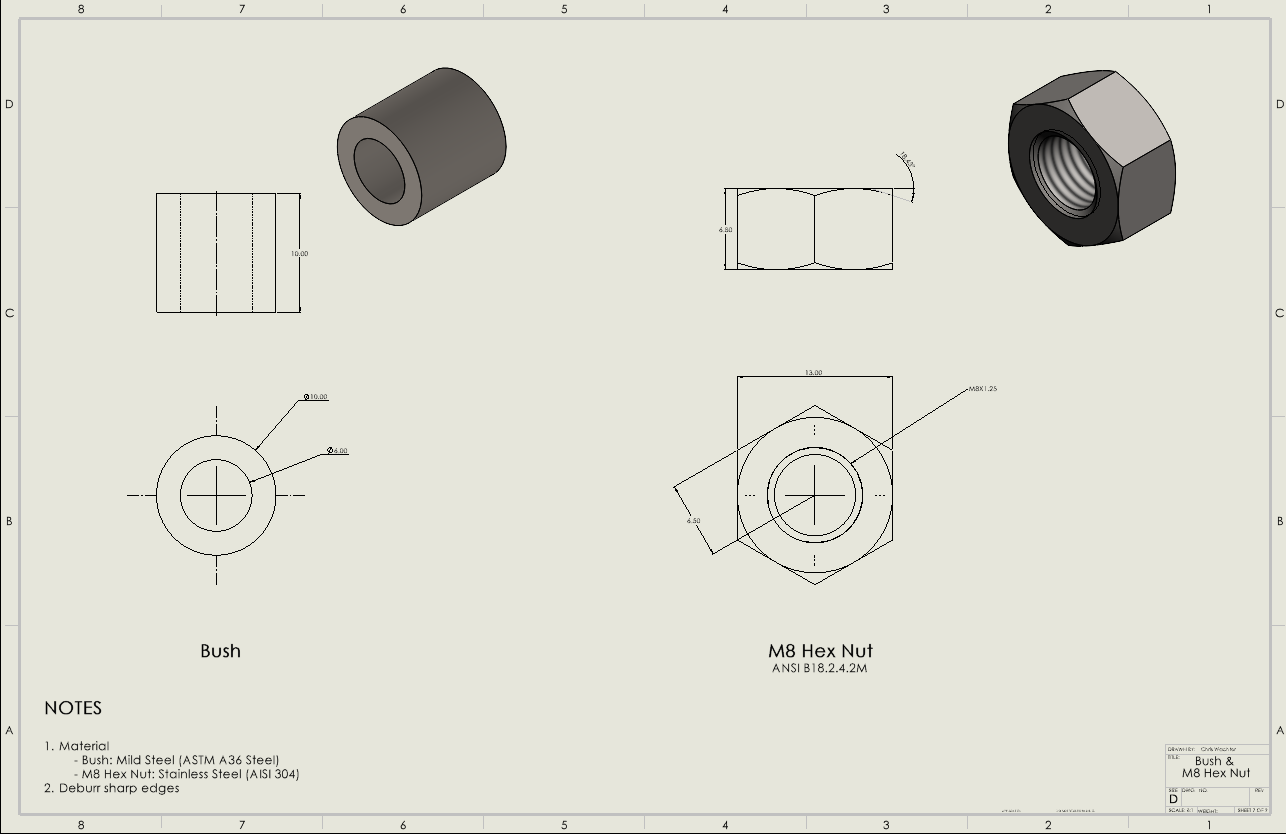

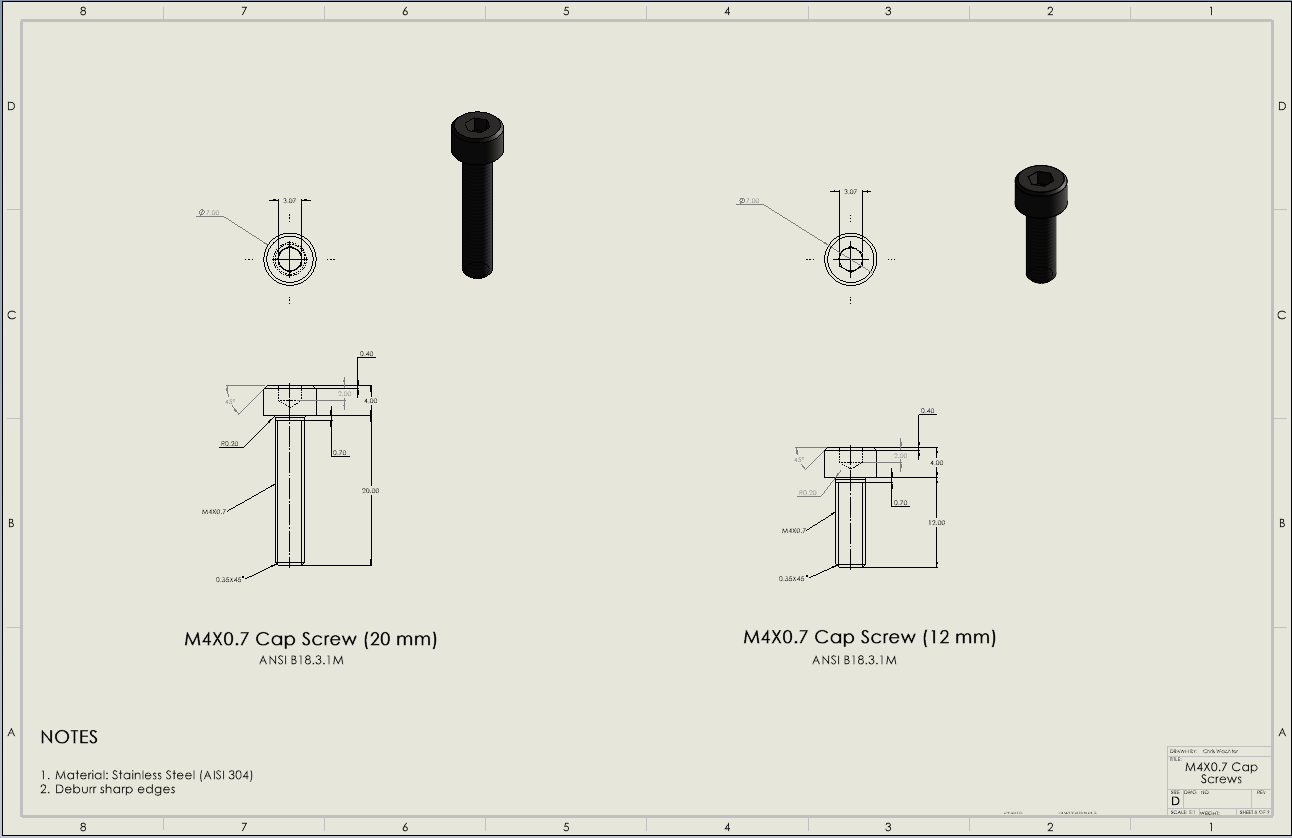

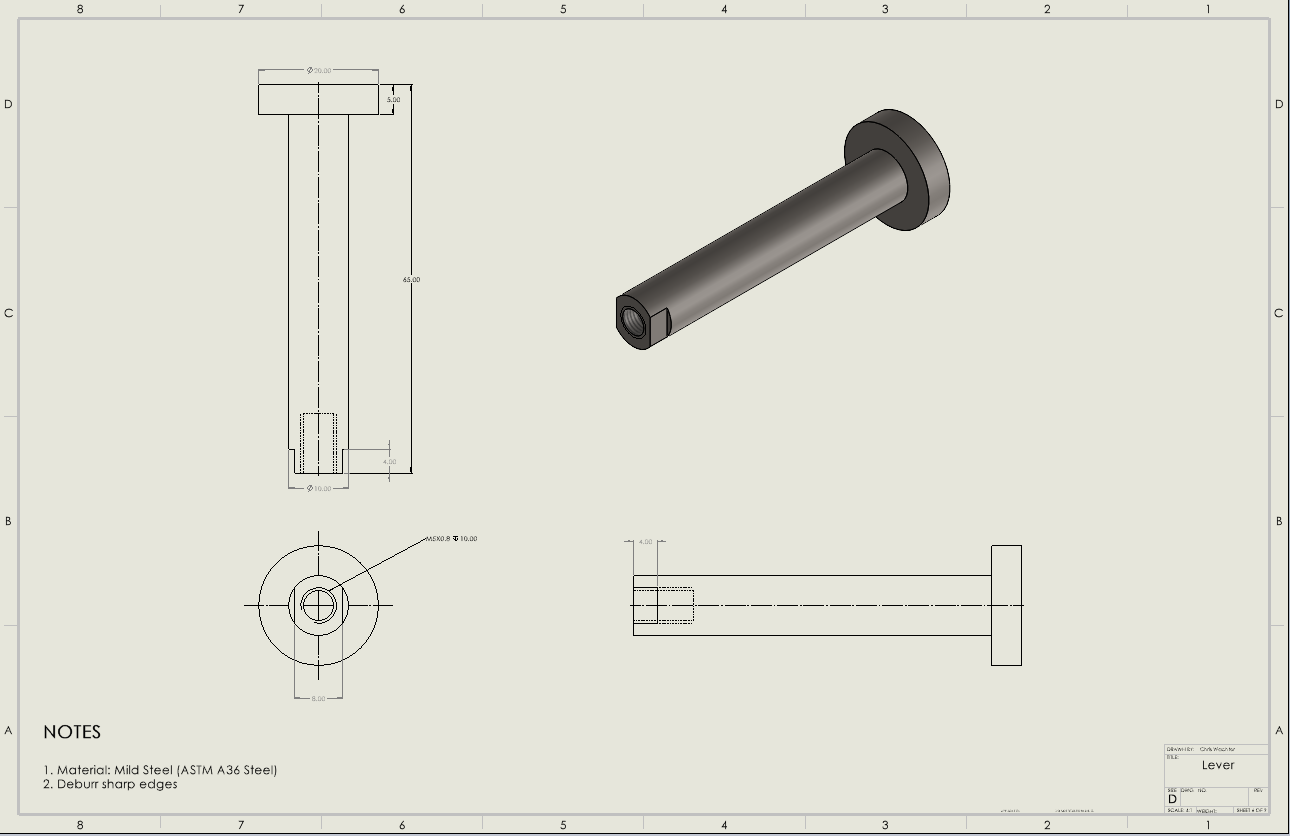

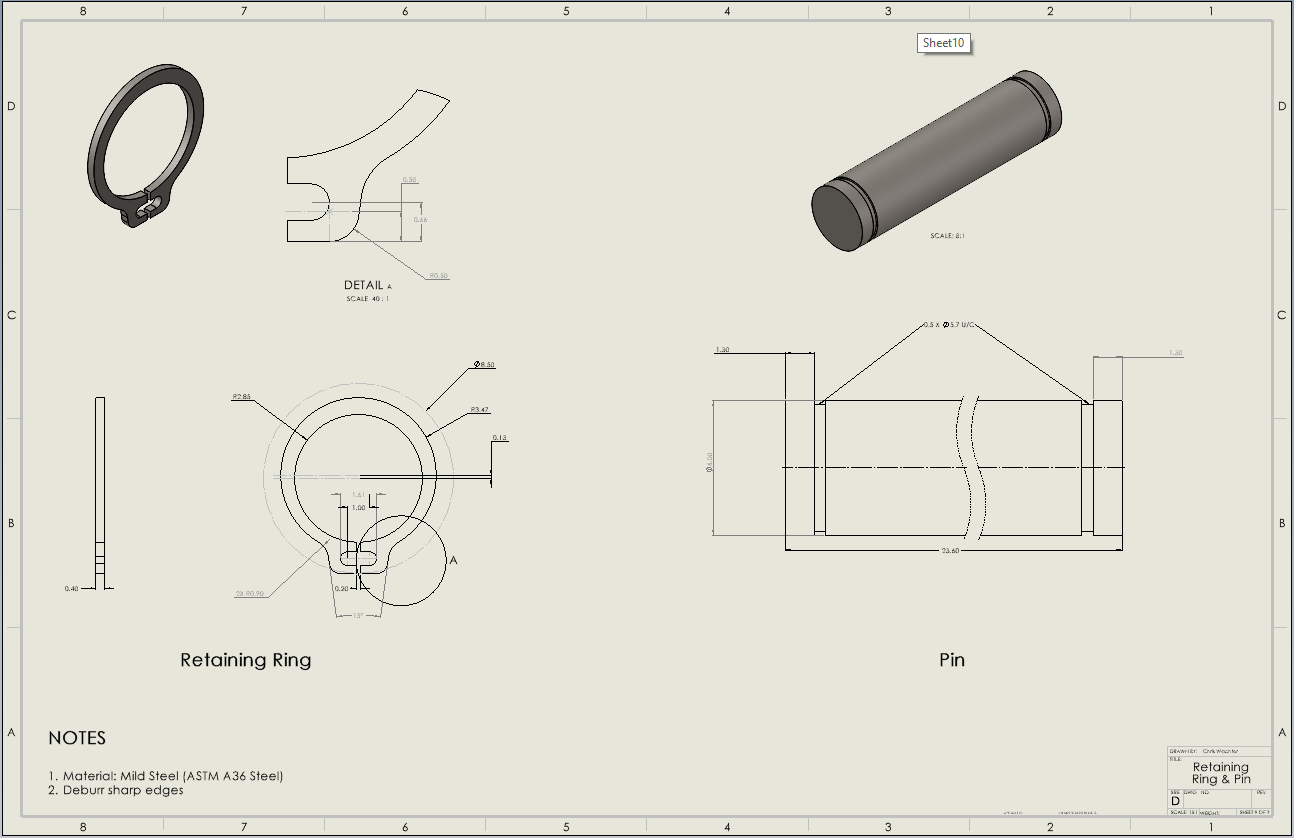

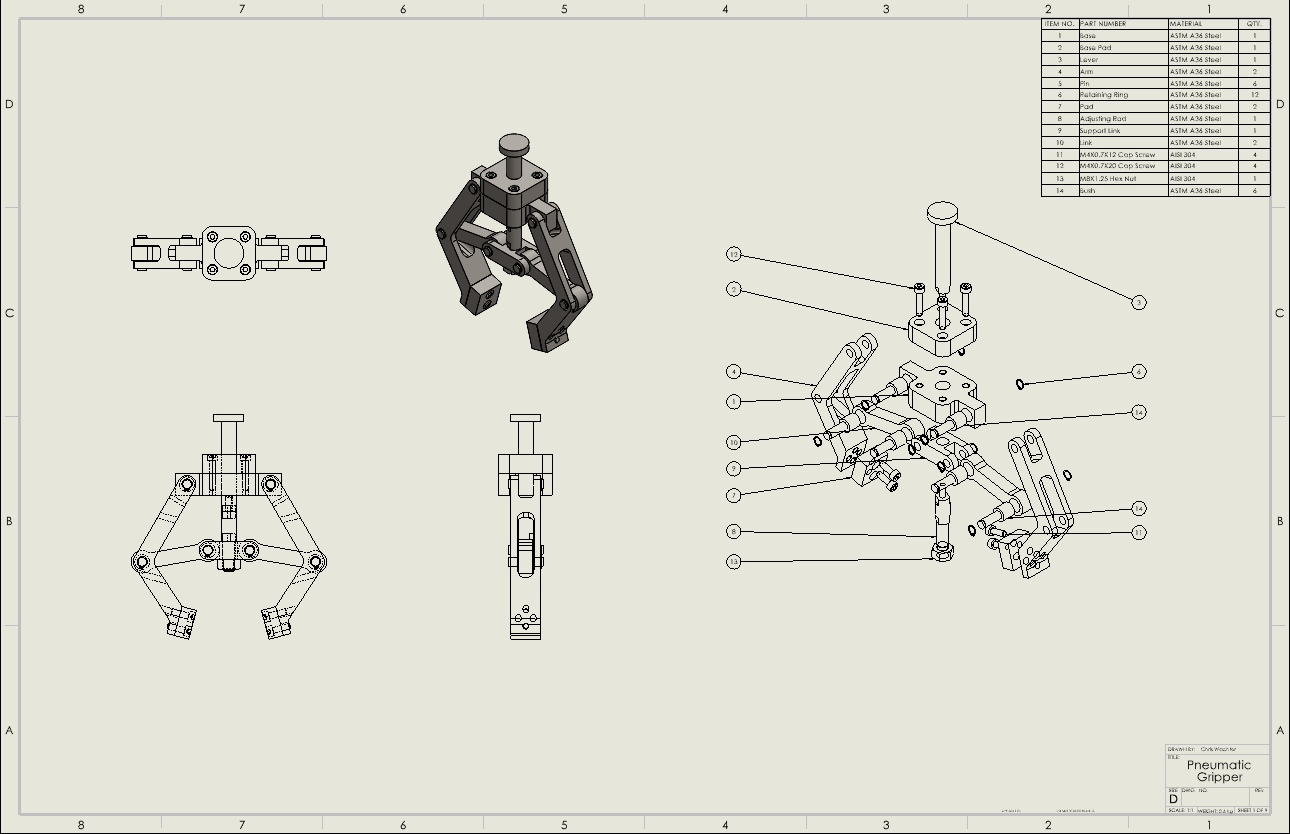

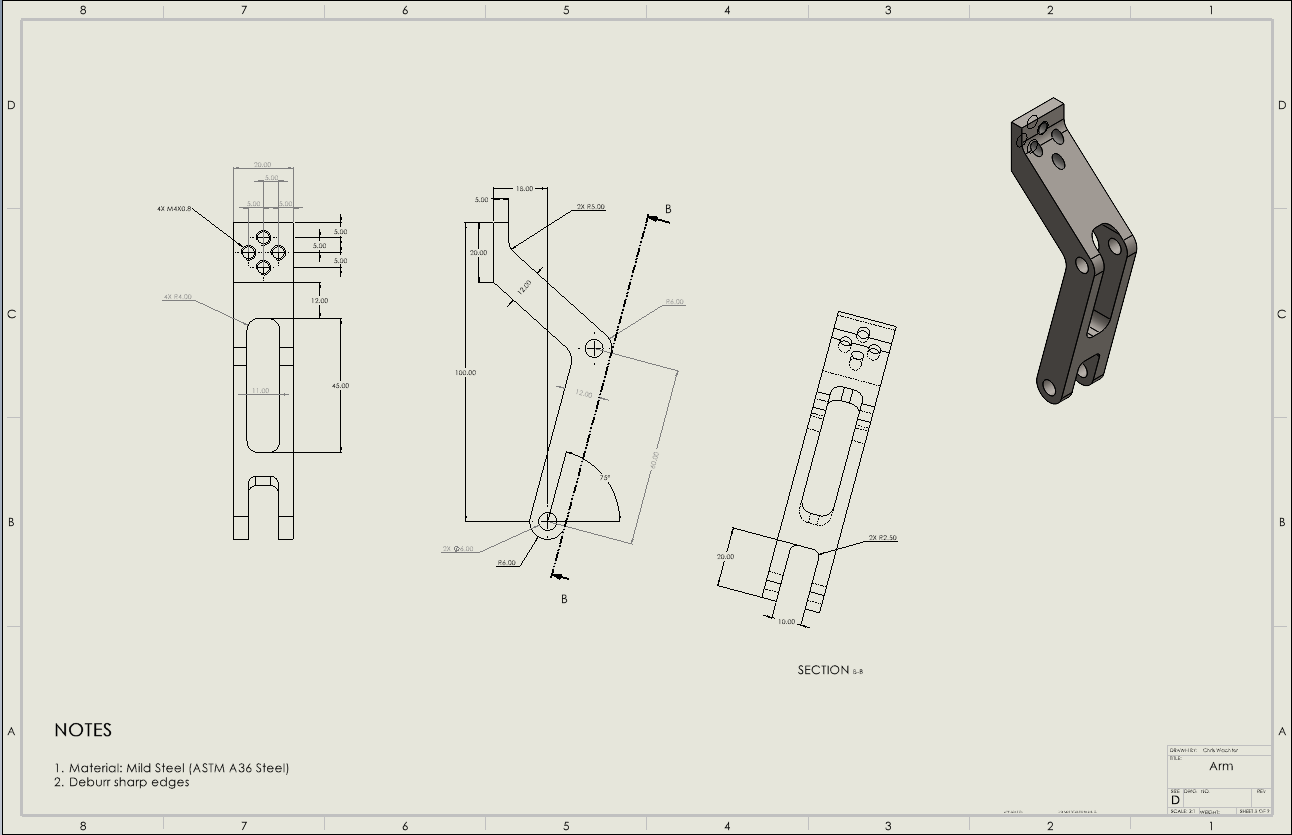

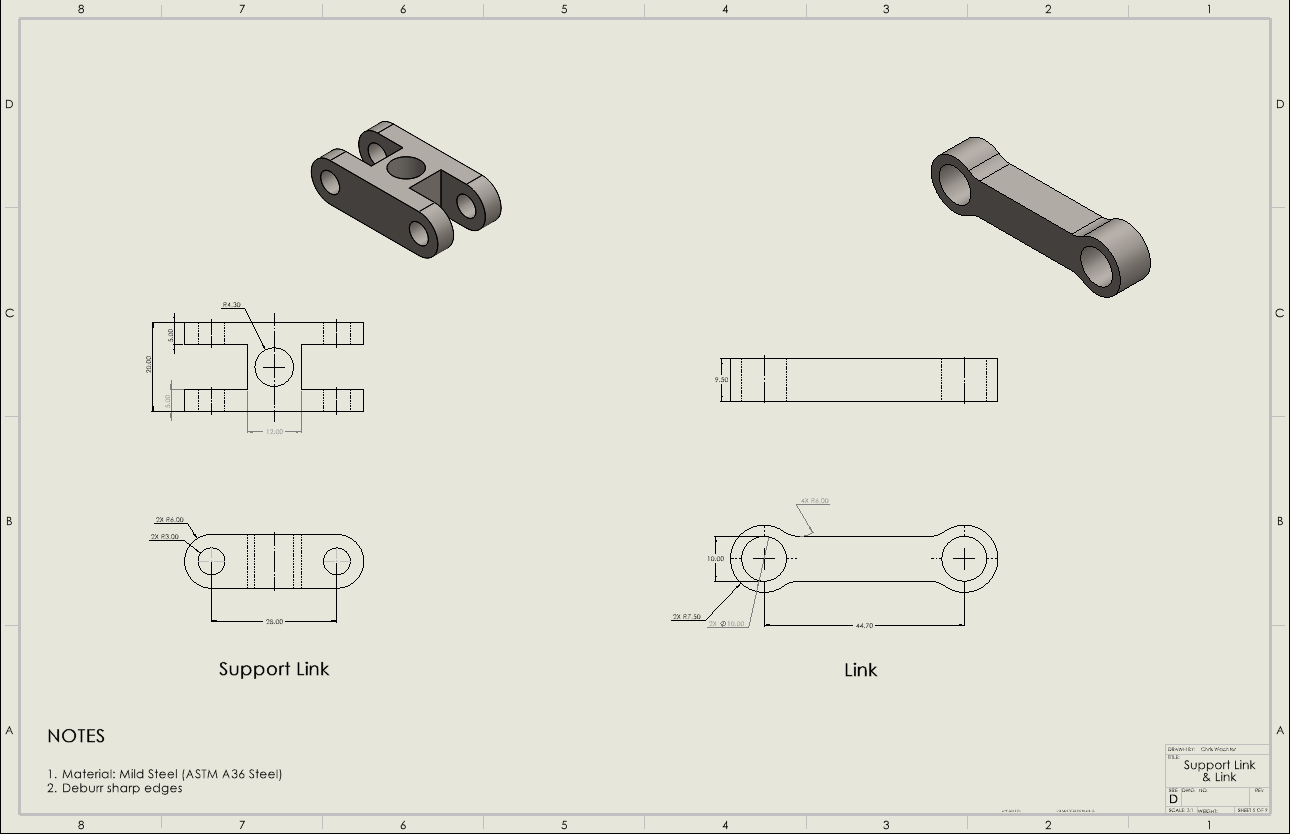

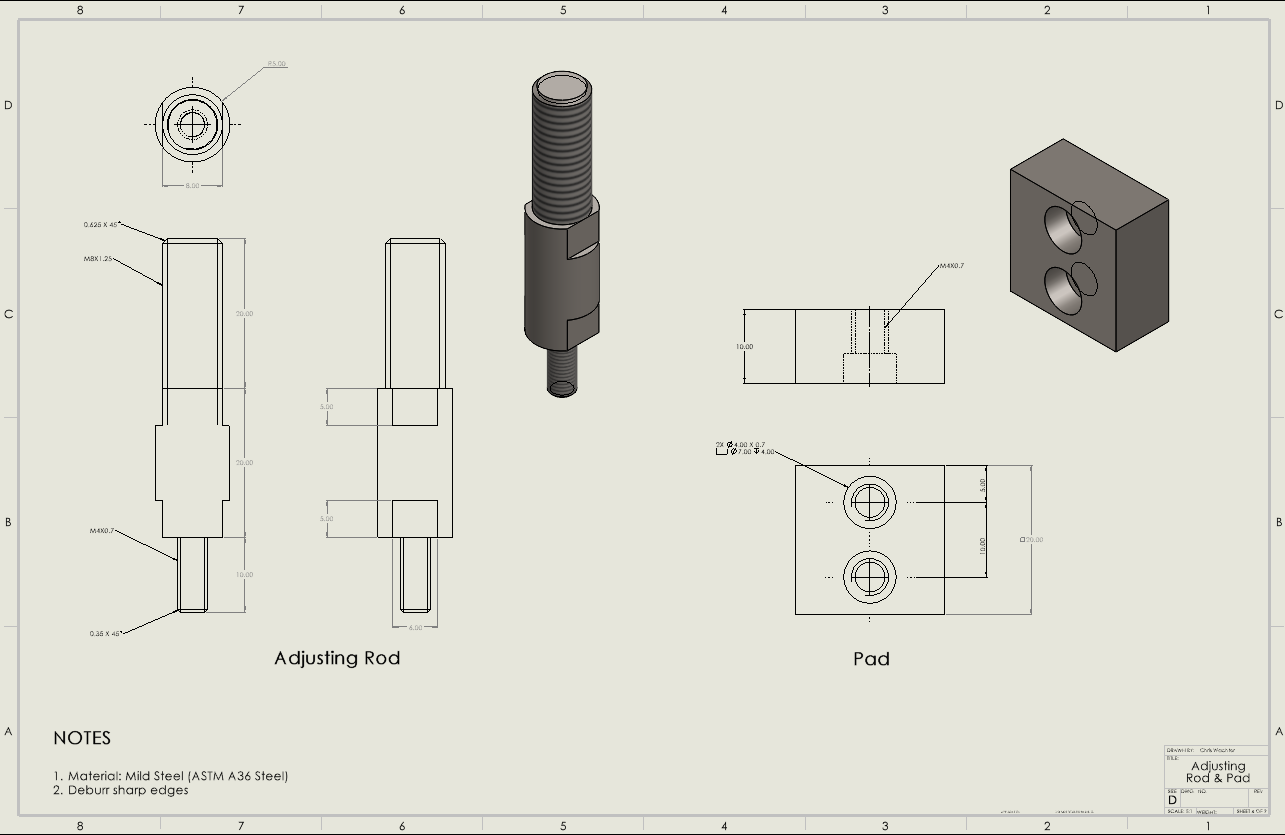

Technical drawings

Sources

  • This is a bonus project exercise included with the textbook “SOLIDWORKS 2024 for Designers (22nd Edition)” by CADCIM Technologies

All parts, assemblies, drawings, animations, and renderings were created by me with the CAD software SolidWorks and the rendering/animation app SolidWorks Visualize.
