Anti-vibration mount

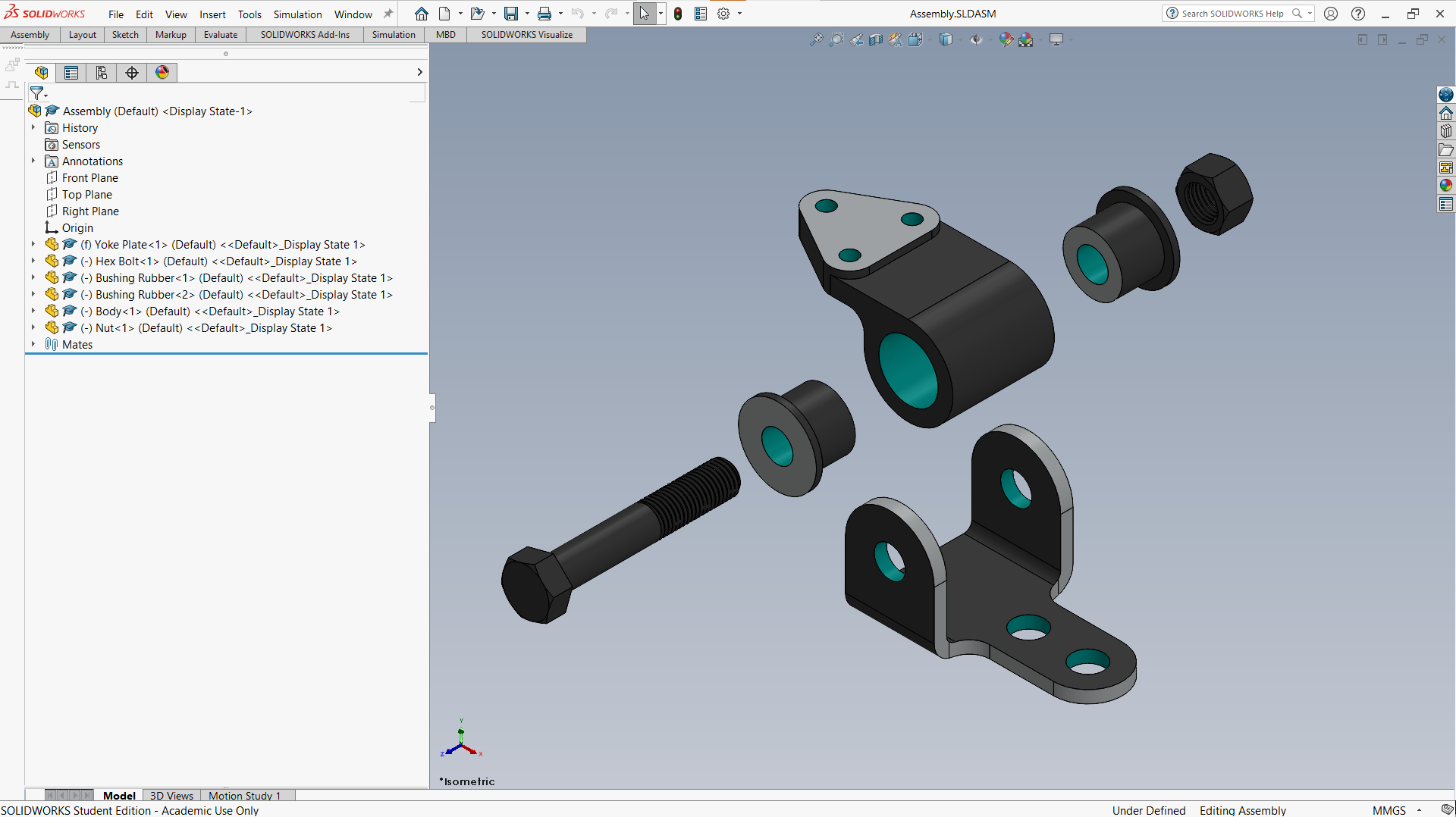

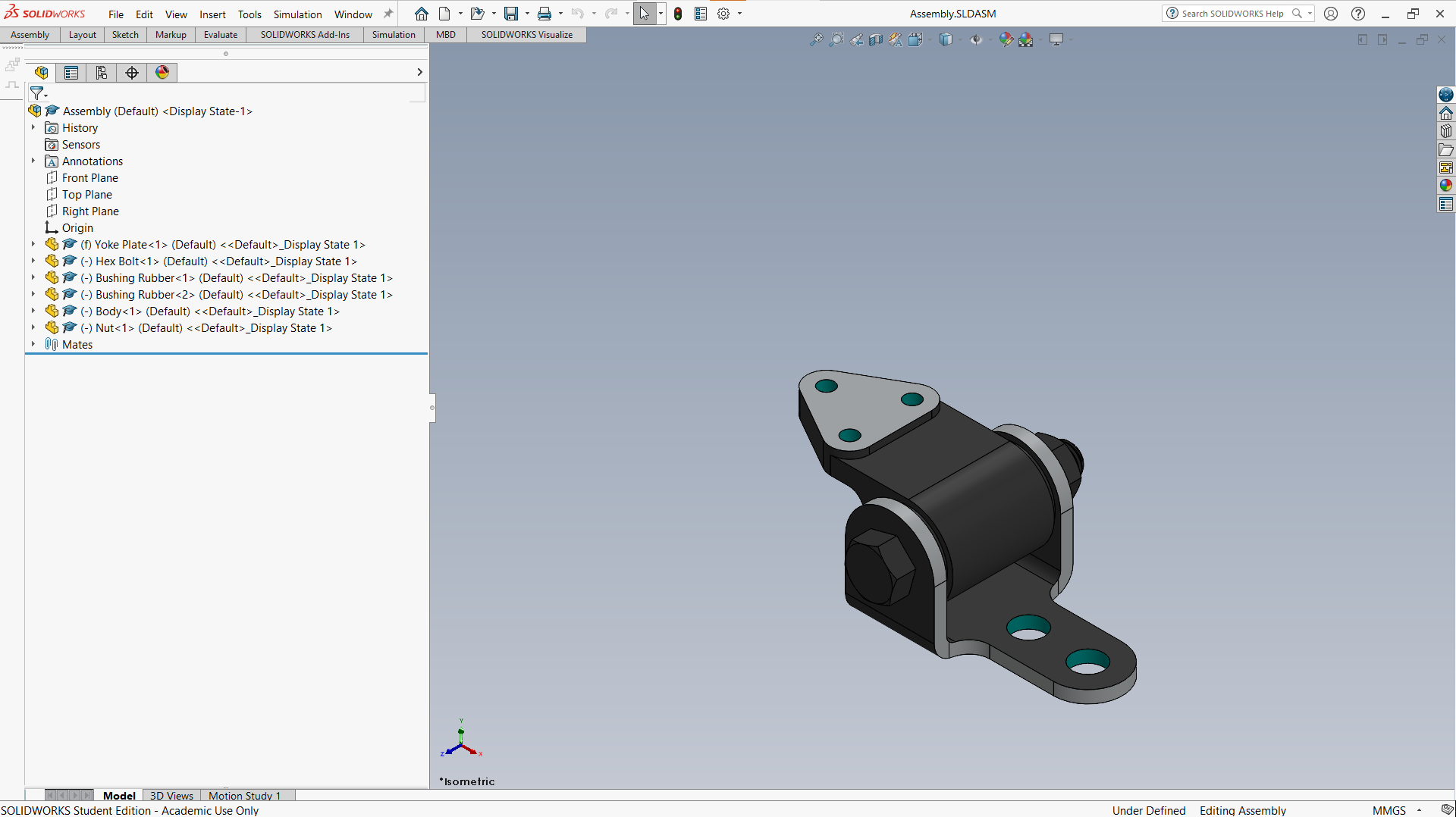

Assembly

Animation of anti-vibration mount going from the exploded to the assembled state

Motion

Animation of the anti-vibration mount adjustability mechanism

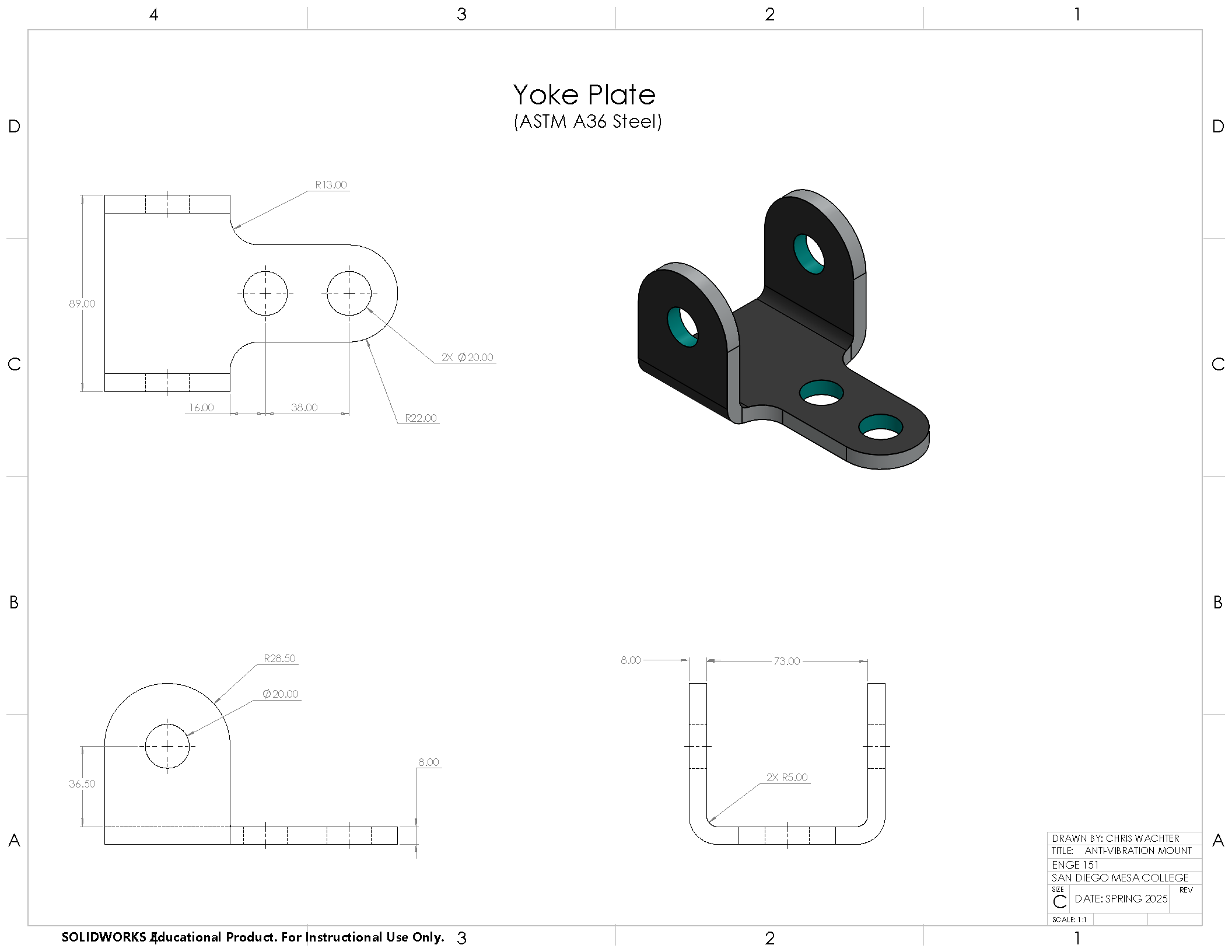

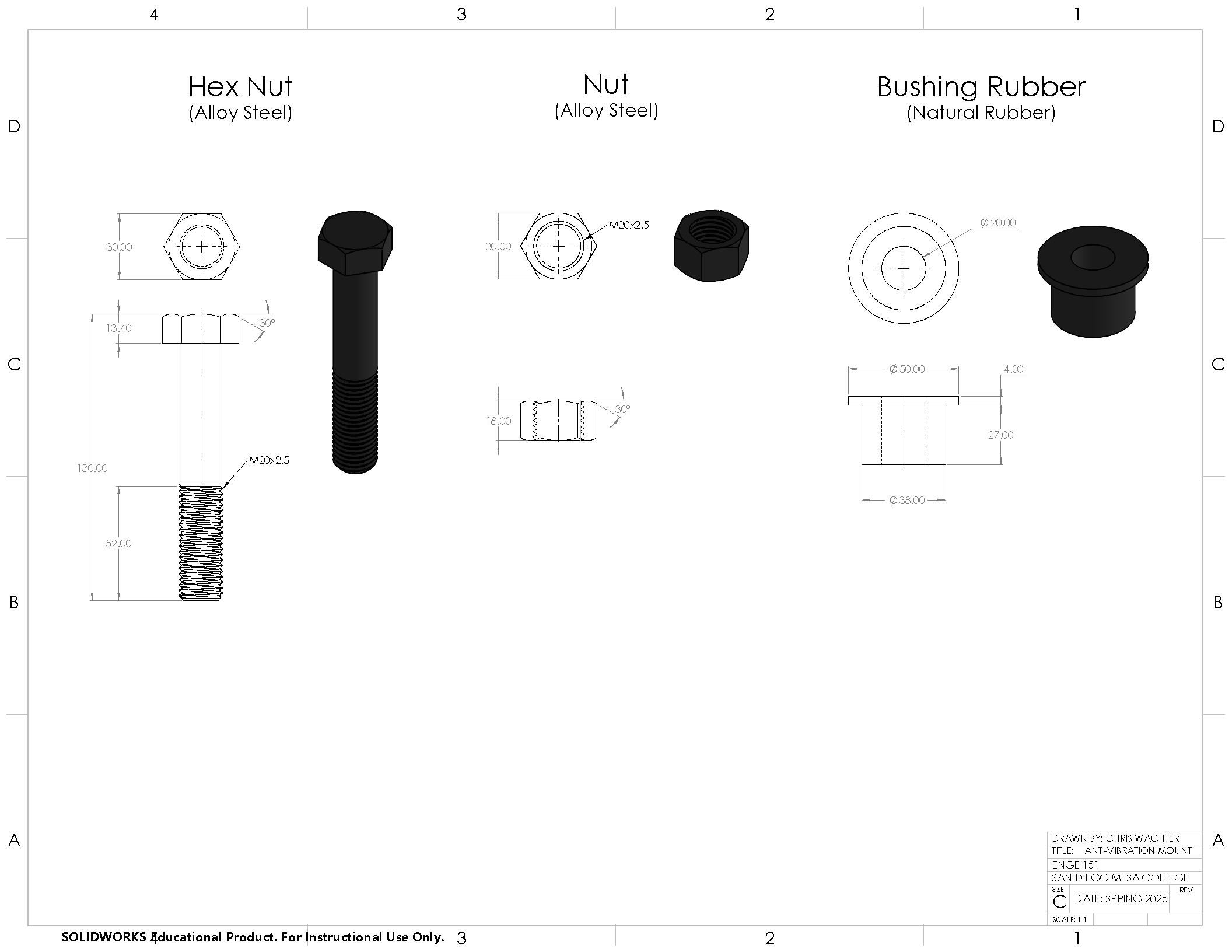

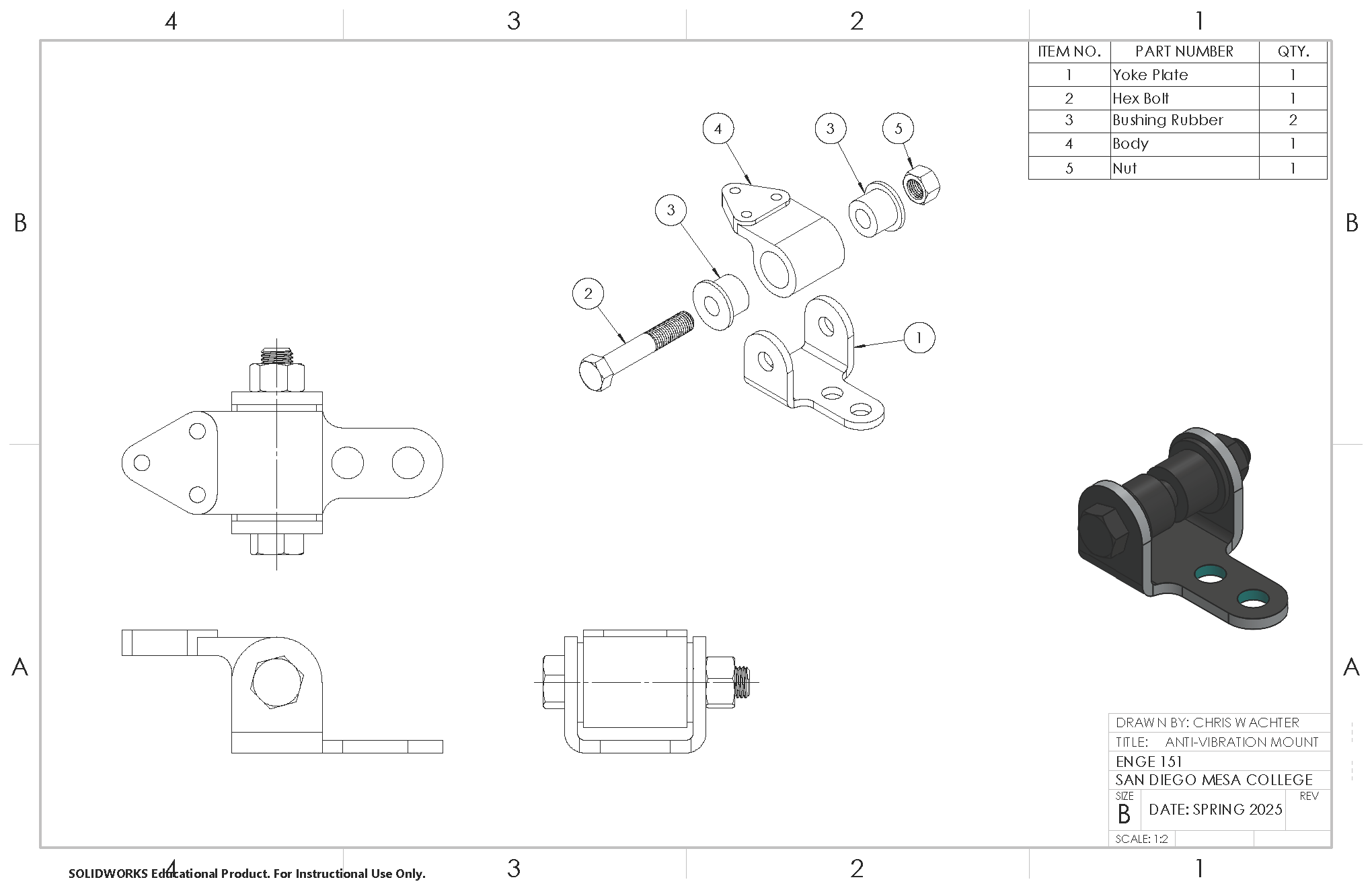

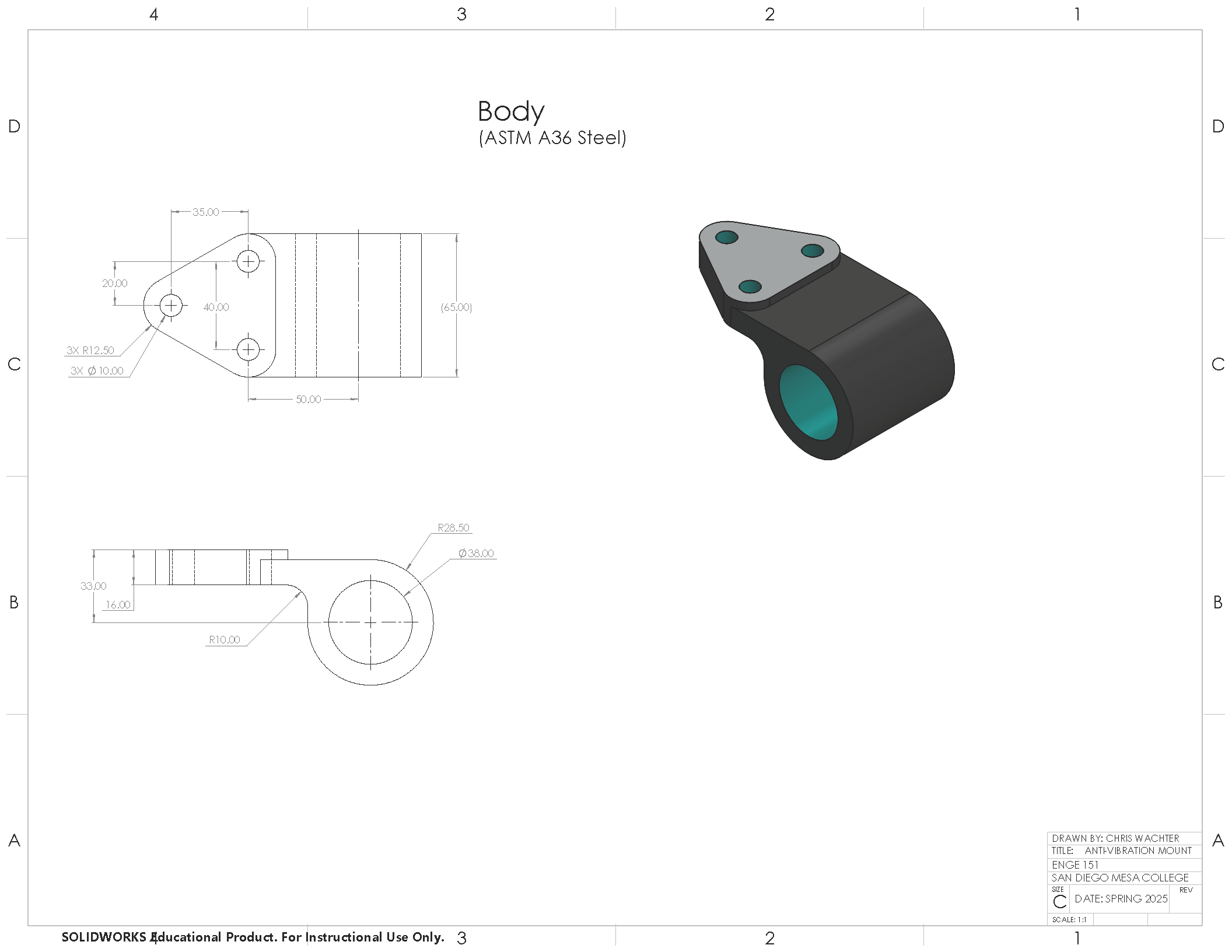

Technical drawings

Source

  • SOLIDWORKS 2024 for Designers (22nd Edition)
  • Author: Sham Tickoo, CADCIM Technologies
  • Chapter 11: Assemblies I
  • Exercise 2

All parts, assemblies, drawings, animations, and renderings were created by me with the CAD software SolidWorks and the rendering/animation app SolidWorks Visualize.
